Spotwelder

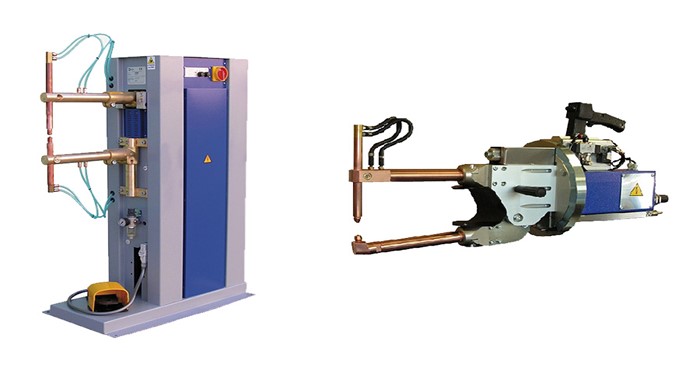

Spot welding machine were developed to weld fittings together. There are 2 different groups available: Stationary and portable machines.

Spot welder

Technical Data (PBP 126)

  • Material: 3.0 mm with 400 mm arm length

  • Secondary Current: 4.2 kA

  • Secondary Voltage: 4.15 V

  • Air Demand: 3.3 Mc/1000 spots

  • Pressure: 6 bar

  • Electricity: 2 x 400 V, 50 Hz, 45 A

  • Dimensions: (without arms): 1,020 x 300 x 1,270 mm

  • Weight: 125 kg

  • Color: BlueRAL 5003, YellowRAL 1003

Highlights

  • Strong mechanical structure

  • Transformer, arms, electrode array and electrodes are water cooled

  • SCR-control

  • Thermostats to control temperature
