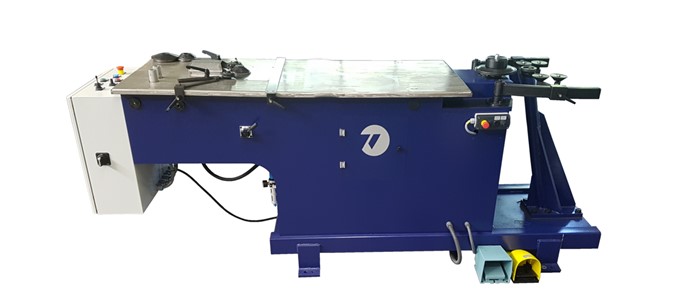

CEM Ultra Hydraulic

The CEM Ultra hydraulic elbow maker is designed to make segmental elbows and similar products (reducers, caps, etc.). An airtight seam is created to meet all requirements by flanging the segments and closing the flange. This machine is ideal for mass and individual production due to its flexibility and the simultaneous use of the flanging and closing stations.

Technical Data

  • Working Area: Table with 2 working stations

  • Diameter: 125 - 1,250 mm (100 mm on request)

  • Material: 0.4 - 1.25 mm galvanized steel

  • Working Speed: 120 m/min

  • Seam Height (reference notice):

    5.0 mm for Ø 125 - 250 mm

    7.5 mm for Ø 250 - 700 mm

    10.0 mm for Ø 700 - 1250 mm

  • Electricity: 400 V, 50 Hz, L1/L2/L3/N/PE, 3.7 kW

  • Pneumatic: 7.0 bar

  • Dimensions: 750 x 2,600 x 1,020 mm

  • Weight: 1,500 kg

  • Color: RAL5003, RAL1003

Highlights

  • High productivity through functional construction

  • Two-in-One machine (seaming and seam closing simultaneously)

  • Forming rolls inclusive

  • Fully hydraulic system
