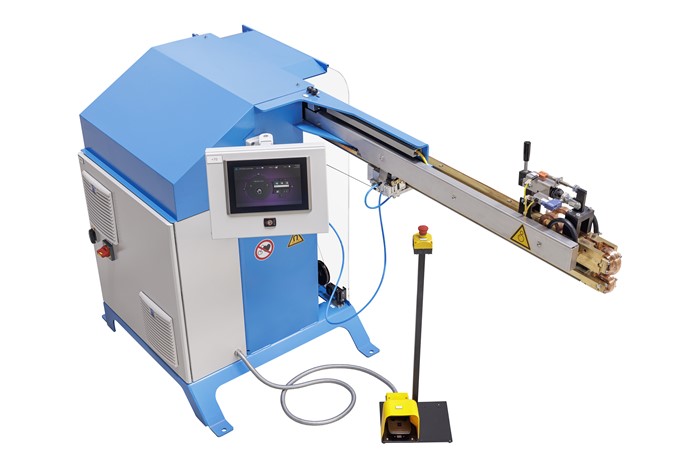

Stichwelder SW1000
This machine has been specially developed for low-temperature welding of pipes, ducts and segment bends, which does not affect the material quality. This saves time, as additional processing such as sealing or painting the seam is no longer necessary. The machine can also be easily adjusted to a wide range of duct sizes and fittings.
Technical Data
-
Speed: 3 - 15 m/min
-
Material Thickness: 0.4 - 1.0 mm
-
Overlap: 6 mm (8 mm for diameters 1,270 and 1,540 mm)
-
Diameter: 75 - 1,000 mm
-
Welding Length: 75 - 1,000 mm (1,270 and 1,540 mm on request)
-
Wire Diameter: 2 - 5 mm
-
Electricity: 3 x 400 V, 50 A max.
-
Air Supply: 6 bar
