Tubeformer TF 1401 Ultra

Tubeformer TF 1401 Ultra

SEW Motor / SEW Drive Kontrolle / Control Layout 1401_2025.png Formkopf-Schnellspannsystem / forming head quick-release system Formköpfe / Forming heads Integrierte 1t Haspel / Integrated 1t decoiler

Technical Data

  • Diameter: 80 - 1,400 mm

  • Material Thickness:

    0.4 - 1.0 mm galvanized steel

    0.4 - 0.6 mm stainless steel

    0.4 - 1.0 mm aluminium

  • Coil: 1,000 kg / OD: 1,200 mm / ID: 480 - 530 mm

  • Coil Width: 137 mm

  • Speed: Max. 60 m/min

  • Run-Off Table: 4,000 mm per table

  • Electricity: 400 V; 50 Hz; L1/L2/L3/N/PE; 7,5 kW

  • Floor Space: 6,500 x 5,000 x 1,800 mm

  • Weight: 2,750 kg

  • Color: Blue RAL 5003, Yellow RAL 1003

Highlights

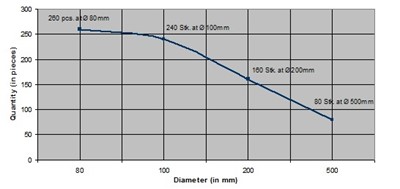

  • Performance index -  3 m pipes per hour, sheet thickness 0.63 mm (click to enlarge)

  • Industry 4.0 ready

  • Production data transfer via network

  • Lightweight aluminum forming tools

  • Quick-Release system for forming tools

  • Single and double corrugating units

  • Flying slitters for Burr-Free cutting

  • SIEMENS® CPU and HMI

  • Ecological Minimum-Volume lubrication system (GLL)

  • Motorized angle adjustment
