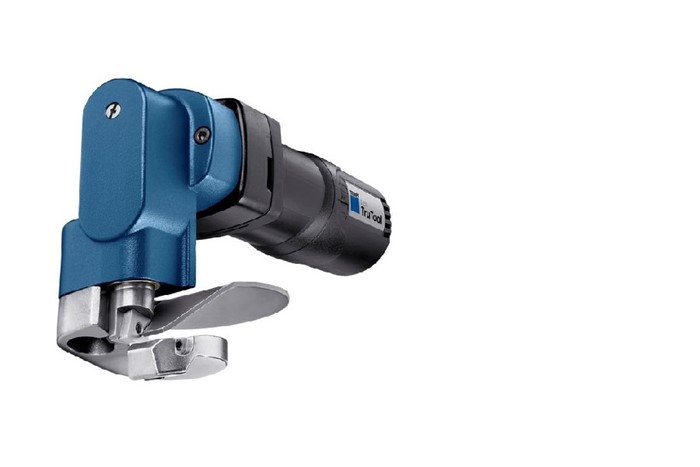

Shear TruTool S 250

The TruTool S 250 is an exceptionally handy shear for mid-range power needs. As with all TRUMPF shears, this one provides a free view of the work area and the cutting line. Cutting along the outline is quick and precise, even overhead. The force expended is low because of the optimal cutting geometry. The shear cuts without chips, and high curve and radius flexibility top off its useful properties.

Technische Daten


TruTool S 250 (230V)

Max. material thickness


  • Steel 400 / mm²

2.5 mm

  • Steel 600 / mm²

2 mm

  • Steel 800 / mm²

1.5 mm

  • Aluminium 250 / mm²

3 mm

Working speed

4 m/min - 7 m/min

Start hole diameter

28 mm

Smallest radius

20 mm

Rated input power

500 W

Strokes at nominal load

1760 RPM

Weight (electrical version: without cable, cordless version: with battery)

2.2 kg

Attractively manageable tool for mid-range power needs

  • Fast, compact
  • Easy to exchange, 4-sided, cutting blades
  • Machine available as electric-version


  • Plumbers
  • Electrical fitters
  • Sanitary / Heating / Ventilation works
  • Container construction
  • Elevators
  • General sheet metal processing operations
  • Coil-application
